Motor electric trifazat 9.2kw 3000rpm 132 B14 IE2 aLL
Motor electric trifazat 9.2kw 3000rpm 132 B14 IE2 aLL de calitate superioara, la pret avantajos, disponibil in stoc sau la comanda!
Stoc ROMANIA: NU
Vă rugăm solicitați actualizare de preț și termen de livrare
Stoc 15-30 zile: NU
Stoc 60-90 zile: DA
Descriere
- Putere: 9,2kw;
- Turatie: 3000rpm/2poli;
- Gabarit: 132;
- Diametru ax: 38mm;
- Fixare: B14;
- Prindere: Flansa mica;
- Diametru flansa: 200mm;
- Bobinaj : Cupru;
- Carcasa: Fonta;
- Greutate: 48kg;
| Gabarit motor (IEC-PAM) | Putere motor (Kw) | Putere motor (cai putere) | Turatie nominala motor | Tensiune | Randament (400V) | Randament (ƞ) 100% | Factor de putere Cos ɸ 100% | is-in | cs-cn | cm-cn | Cuplu nominal | Kgm2 | Greutate |
| 56a | 0.09kw | 0.12HP | 2750rot/min | 230/400V | 0.5A | 41 | 0,63 | 3,1 | 2,60 | 2,70 | 0.31Nm | 0,00010 | 2.7kg |
| 56b | 0.12kw | 0.16HP | 2770rot/mi | 230/400V | 0.5A | 51 | 0,57 | 3,5 | 2,80 | 2,90 | 0.41m | 0,00010 | 3.1kg |
| 63a | 0.18kw | 0.25HP | 2780rot/min | 230/400V | 0.68A | 61 | 0,63 | 3,8 | 2,50 | 2,60 | 0.62Nm | 0,00019 | 3.1kg |
| 63b | 0.25kw | 0.33HP | 2780rot/min | 230/400V | 0.75A | 67 | 0,72 | 3,8 | 2,80 | 2,90 | 0.86Nm | 0,00019 | 3.5kg |
| 63c | 0.37kw | 0.5HP | 2790rot/min | 230/400V | 0.9A | 74 | 0,80 | 4,2 | 2,90 | 3,00 | 1.27Nm | 0,00023 | 3.9kg |
| 63e | 0.55kw | 0.75HP | 2790rot/min | 230/400V | 1.5A | 72 | 0,74 | 4 | 2,30 | 2,50 | 1.88Nm | 0,00030 | 4.8kg |
| 71a | 0.37kw | 0.5HP | 2790rot/min | 230/400V | 1A | 69 | 0,77 | 4,5 | 2,60 | 2,70 | 1.27Nm | 0,00032 | 5.7kg |
| 71b | 0.55kw | 0.75HP | 2800rot/min | 230/400V | 1.4A | 72 | 0,79 | 4,4 | 2,80 | 2,90 | 1.88Nm | 0,00042 | 6.7kg |
| 71c | 0.75kw | 1HP | 2800rot/min | 230/400V | 1.8A | 74 | 0,81 | 4,5 | 0,75 | 3,10 | 2.56Nm | 0,00057 | 8.0kg |
| 80a | 0.75kw | 1HP | 2820rot/min | 230/400V | 1.9A | 76 | 0,75 | 4,6 | 2,20 | 2,50 | 2.54Nm | 0,00083 | 8.6kg |
| 80b | 1.1kw | 1.5HP | 2820rot/min | 230/400V | 2.3A | 82 | 0,84 | 5,1 | 2,50 | 2,60 | 3.73Nm | 0,00103 | 9.6kg |
| 80c | 1.5kw | 2HP | 2830rot/min | 230/400V | 3.2A | 81 | 0,84 | 5,5 | 2,70 | 2,90 | 5.06Nm | 0,00124 | 10.7kg |
| 90Sa | 1.5kw | 2HP | 2850rot/min | 230/400V | 3.8A | 75 | 0,76 | 5,4 | 2,20 | 2,70 | 5.03Nm | 0,00130 | 13.4kg |
| 90Lb | 2.2kw | 3HP | 2860rot/min | 230/400V | 5.2A | 76 | 0,80 | 5 | 2,70 | 3,00 | 7.35Nm | 0,00185 | 14.7kg |
| 90Lc | 3kw | 4HP | 2860rot/min | 230/400V | 7A | 80 | 0,77 | 6 | 2,90 | 3,10 | 10.02Nm | 0,00222 | 17.7kg |
| 100La | 3kw | 4HP | 2880rot/min | 230/400V | 6.8A | 77 | 0,83 | 6,2 | 2,20 | 2,80 | 9.95Nm | 0,00284 | 17.9kg |
| 100Lb | 4kw | 5.5HP | 2880rot/min | 230/400V | 8A | 84 | 0,86 | 6,5 | 2,20 | 2,80 | 13.27Nm | 0,00379 | 21.6kg |
| 112Ma | 4kw | 5.5HP | 2900rot/min | 400/690V | 8.4A | 81 | 0,85 | 6,5 | 2,20 | 2,60 | 13.18Nm | 0,00506 | 25.5kg |
| 112Mb | 5.5kw | 7.5HP | 2910rot/min | 400/690V | 11.4A | 83 | 0,84 | 6,7 | 2,10 | 2,60 | 18.06Nm | 0,00658 | 30.3kg |
| 112Me | 7.5kw | 10HP | 2915rot/min | 400/690V | 15.6A | 84 | 0,83 | 6,8 | 2,30 | 2,60 | 24.58Nm | 0,00759 | 33.1kg |
| 112MLg | 9.2kw | 12.5HP | 2920rot/min | 400/690V | 18.5A | 86 | 0,84 | 6,6 | 2,30 | 2,70 | 30.10Nm | 0,00911 | 36.4kg |
| 132Sa | 5.5kw | 7.5HP | 2920rot/min | 400/690V | 11.4A | 83 | 0,84 | 5,8 | 2,10 | 2,20 | 18.00Nm | 0,01016 | 38.7kg |
| 132Sb | 7.5kw | 10HP | 2915rot/min | 400/690V | 15A | 87 | 0,83 | 6,2 | 2,60 | 3,10 | 24.58Nm | 0,01242 | 41.3kg |
| 132Mc | 9.2kw | 12.5HP | 2920rot/min | 400/690V | 19A | 86 | 0,81 | 0,81 | 6,8 | 2,60 | 3.30Nm | 0,01581 | 47.6kg |
| 132Md | 11kw | 15HP | 2920rot/min | 400/690V | 21A | 88 | 0,86 | 7,2 | 2,50 | 3,50 | 35.99Nm | 0,01919 | 54.0kg |
| 132Me | 15kw | 20HP | 2930rot/min | 400/690V | 28A | 89 | 0,87 | 6,7 | 2,60 | 3,60 | 48.91Nm | 0,02145 | 58.1kg |
| 132Mg | 18.5kw | 25HP | 2925rot/min | 400/690V | 35.3A | 89 | 0,85 | 6,8 | 2,30 | 3,20 | 60.43Nm | 0,02484 | 66.3kg |
| 160Ma | 11kw | 15HP | 2940rot/min | 400/690V | 21.7A | 87 | 0,84 | 7,2 | 2,50 | 3,10 | 35.75Nm | 0,02817 | 76.1kg |
| 160Mb | 15kw | 20HP | 2930rot/min | 400/690V | 28.6A | 88 | 0,86 | 7,4 | 2,50 | 3,10 | 48.91Nm | 0,03842 | 88.0kg |
| 160Lc | 18.5kw | 25HP | 2930rot/min | 400/690V | 35.3A | 90 | 0,84 | 7 | 2,40 | 3,30 | 60.32Nm | 0,04610 | 96.8kg |

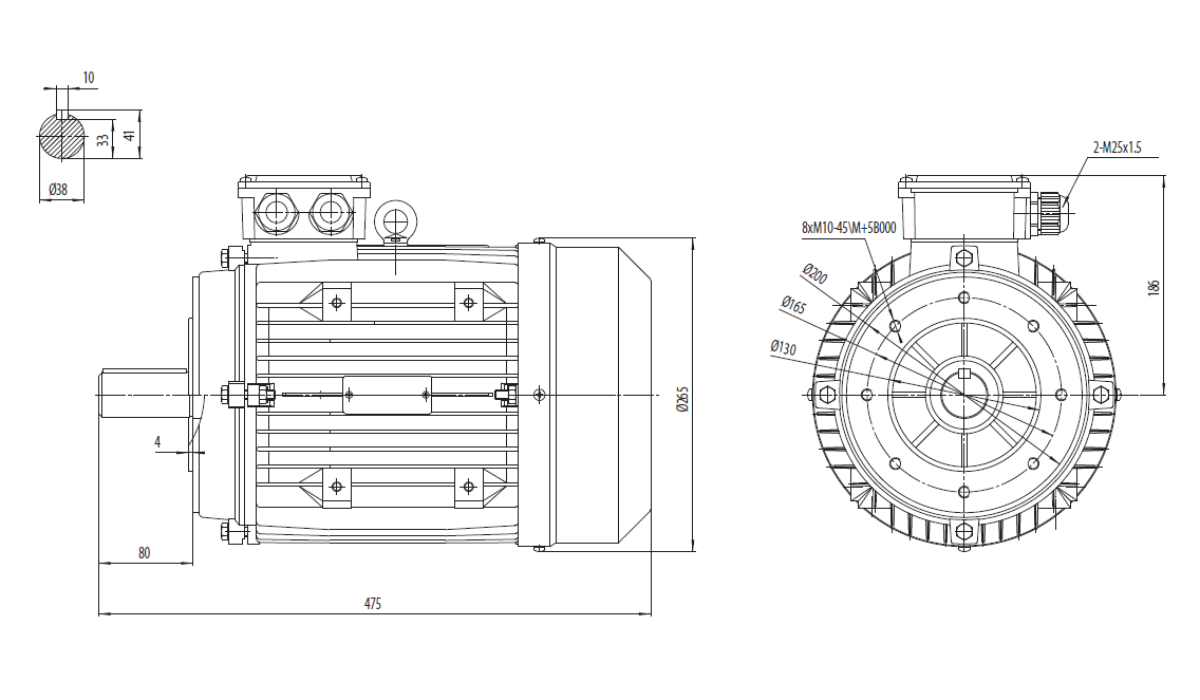

Aceste informații detaliate sunt despre dimensiunile și specificațiile tehnice ale acestui motor electric asincron trifazat, ce pot fi folosite pentru a îmbunătăți descrierea produselor de pe site-ul aLLindustriaL.ro, oferind clienților toate detaliile necesare pentru a face alegerea potrivită!
