Motor electric trifazat 75kw 1000rpm 315 B3 IE2 aLL

Cod: MET6 75 315B3 IE2 aLL
Marcă: aLL industriaL

Motor electric trifazat 75kw 1000rpm 315 B3 IE2 aLL de calitate superioara, la pret avantajos, disponibil in stoc sau la comanda!

Alegeți variantaToate cele 146 de variante

Varianta 146

Preț la cerere

Trimiteți cererea și primiți oferta cu prețul și termenul de livrare, de obicei în aceeași zi.

Prețurile sunt vizibile pentru clienții cu cont aprobat. Autentificați-vă

Sau sunați: 0746 556 600

Documente tehnice

Specificații tehnice

Prindere	B3
Fixare	Talpa
Diametru Ax	80 mm
Gabarit	315
Model gabarit	315S6
Turație	1.000 rpm
Putere	75 kW
Poli	6 poli
Unitate de măsură	buc

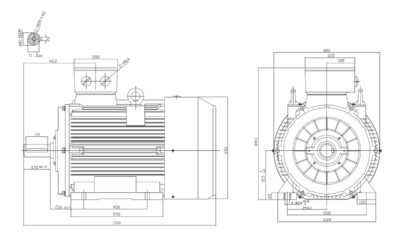

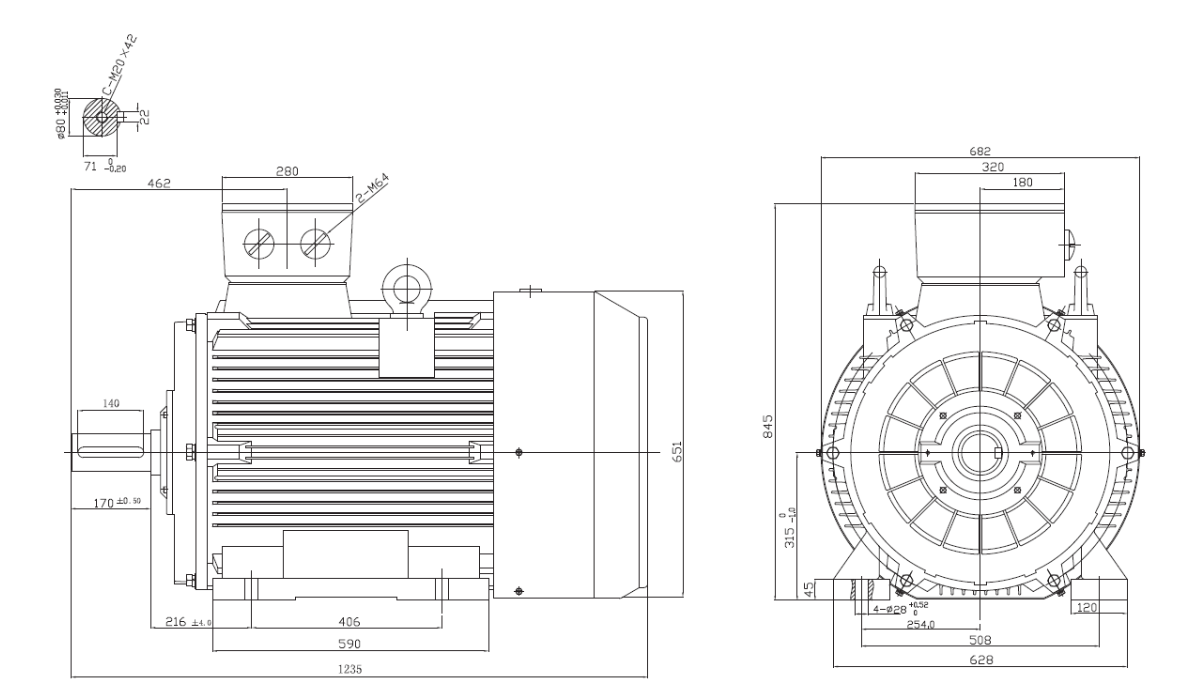

Cote

Dimensiunile din vizualizarea 3D, în milimetri, fiecare cu sursa ei.

Dimensiune	Valoare	Sursa
Model gabaritCatalog-General-Motoare-Electrice.pdf, p. 38	315S6	Catalog-General-Motoare-Electrice.pdf, p. 38
Lungime cu axCatalog-General-Motoare-Electrice.pdf, p. 104	1185minimă	Catalog-General-Motoare-Electrice.pdf, p. 104
Lungime fără axCatalog-General-Motoare-Electrice.pdf, p. 104calculat	1015minimă	Catalog-General-Motoare-Electrice.pdf, p. 104calculat
Diametru motorCatalog-General-Motoare-Electrice.pdf, p. 104	Ø620	Catalog-General-Motoare-Electrice.pdf, p. 104
Înălțimea axuluiCatalog-General-Motoare-Electrice.pdf, p. 104	315	Catalog-General-Motoare-Electrice.pdf, p. 104
Tălpi, entraxeCatalog-General-Motoare-Electrice.pdf, p. 104	508 × 406	Catalog-General-Motoare-Electrice.pdf, p. 104
Umărul axului la prima talpăCatalog-General-Motoare-Electrice.pdf, p. 104	216	Catalog-General-Motoare-Electrice.pdf, p. 104
Găuri tălpiCatalog-General-Motoare-Electrice.pdf, p. 104	28 × 45	Catalog-General-Motoare-Electrice.pdf, p. 104
Diametru axCatalog-General-Motoare-Electrice.pdf, p. 104	Ø80	Catalog-General-Motoare-Electrice.pdf, p. 104
Lungime axCatalog-General-Motoare-Electrice.pdf, p. 104	170	Catalog-General-Motoare-Electrice.pdf, p. 104
Lățime panăCatalog-General-Motoare-Electrice.pdf, p. 104	22	Catalog-General-Motoare-Electrice.pdf, p. 104
Ax cu pană (GA)IEC 60072-1după standard	85	IEC 60072-1după standard
Axul la capacul cutiei de borneCatalog-General-Motoare-Electrice.pdf, p. 104calculat	500	Catalog-General-Motoare-Electrice.pdf, p. 104calculat

Lungimea L este minimă; motorul poate fi mai lung.
